Kitchen Queen 480

Kitchen Queen 480

US$ 3950

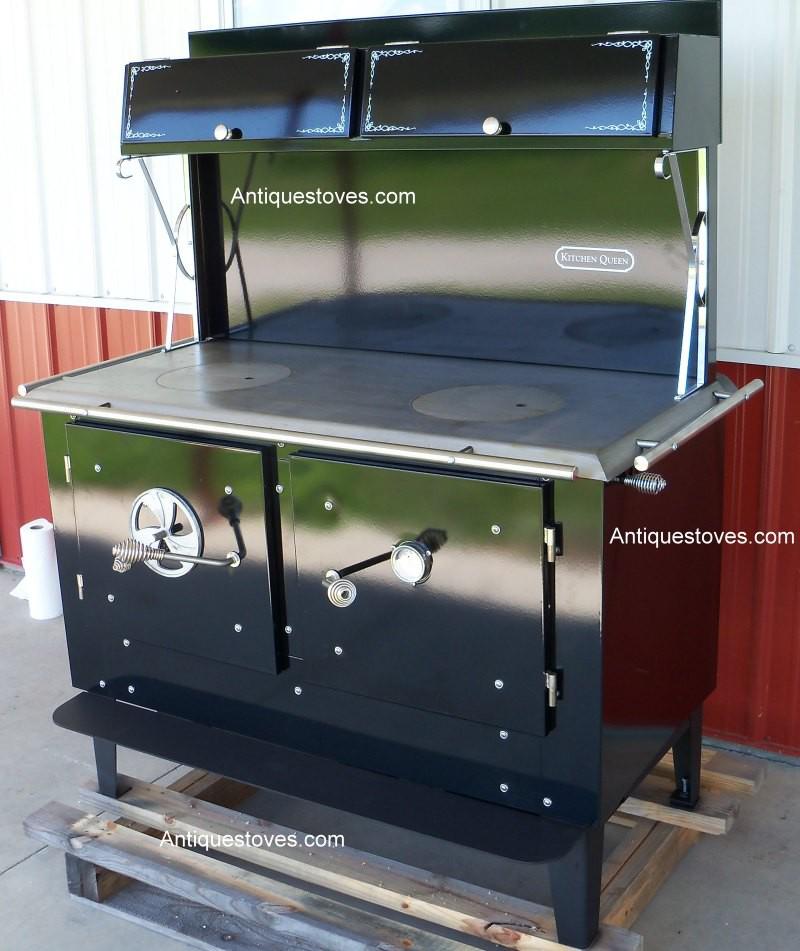

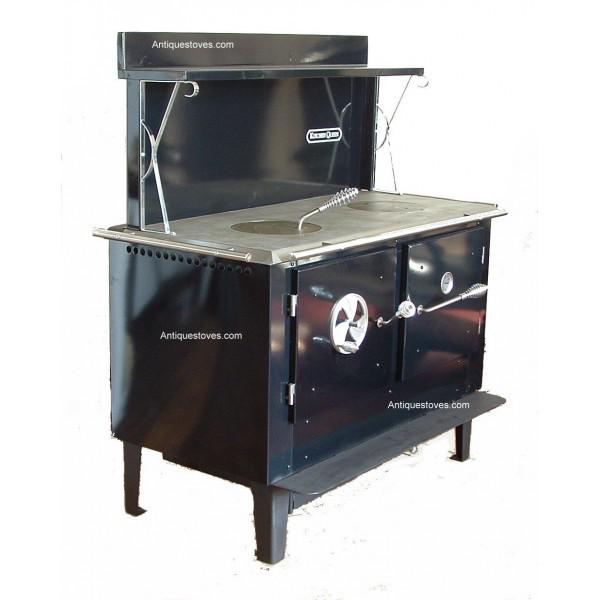

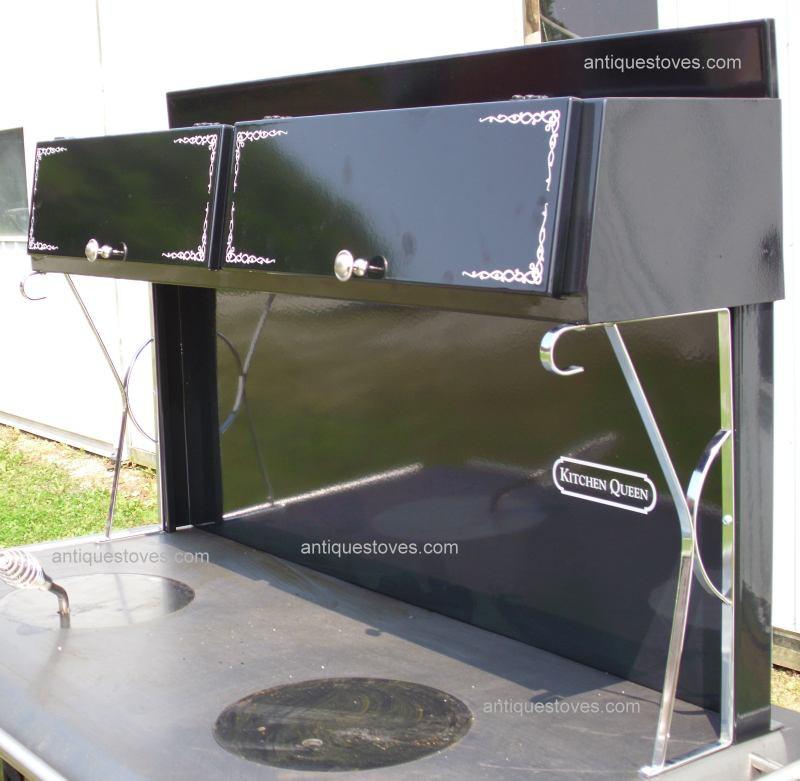

Kitchen Queen 480 Wood Cook Stove - show with some options Kitchen Queen 480 Stove - OPTIONS AVAILIBLE - Fire View Door, Oven View Door, Water Reservoir, Hot Water Coil, Warming Oven, Summer Grate, option information click on ACCESSORIES Tab

made in usa



The Kitchen Queen Cook Stove has been designed and tested with economy, efficiency , and utility in mind.  The Kitchen Queen works with natural heat convection.  The design is a radical and daring departure from the wood ranges of yesteryear.

It will:

  • Cook your Food
  • Heat your Water
  • Warm your Home
  • Bake your Bread
  • Save you Money



Kitchen Queen features:

  • New design reduces creosote  buildup to a bare minimum.
    Under normal circumstances, virtually no liquid creosote is deposited in the stove.
  • Two hot water heating systems:

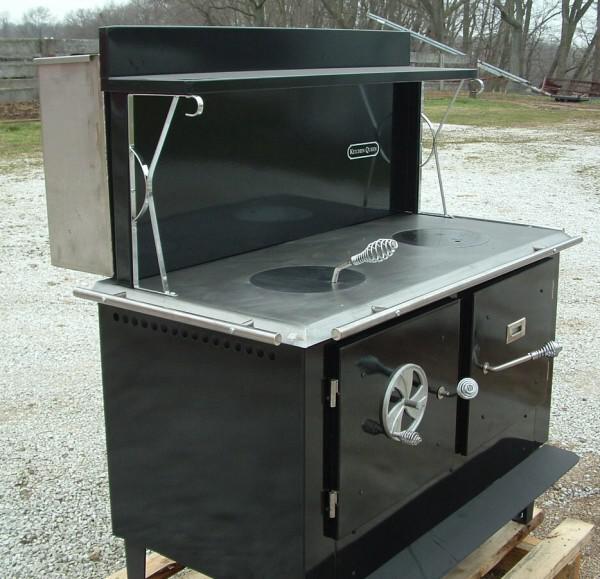

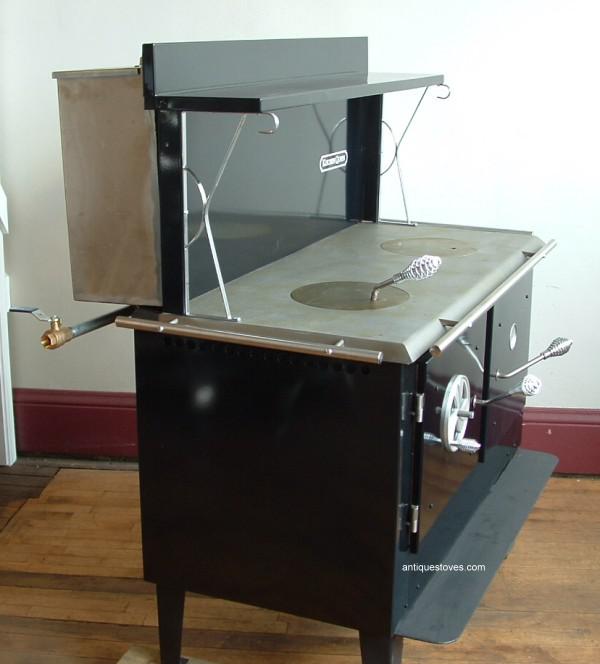

    a 17 or 25 gallon reservoir that fits neatly on the back of the stove (taking up no extra floor space), or coils for hooking up to a remote storage tank.
  • Constructed of heavy gauge steel with all seams welded throughout for lifetime airtight construction.
  • Large airtight firebox capable of heating up to 2500sq. ft.
  • Choice of two sizes.
  • Large fire loading door reduces wood splitting.
  • Large even-heating oven.

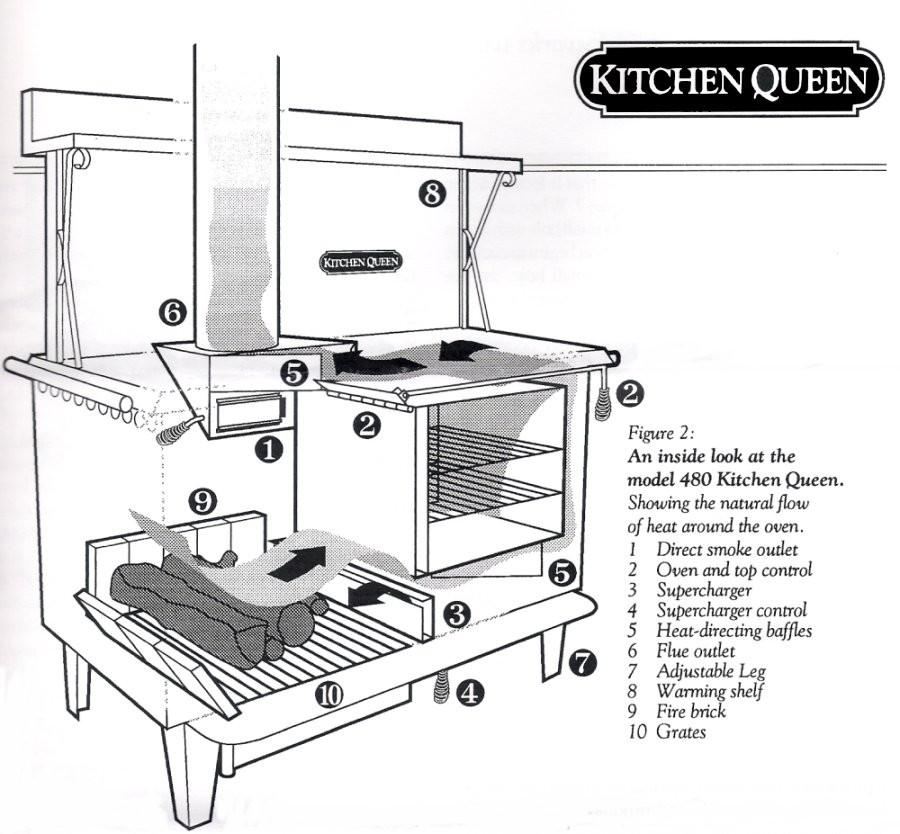

  • Heat is first directed under the oven to work with natural heat convection.
  • Porcelain enamel finish
  • High back with 7" or 9" warming shelf keeps things you need handy.
  • Warming Oven or Shelf
  • Stay cool spring handles. No splitting or burning off.

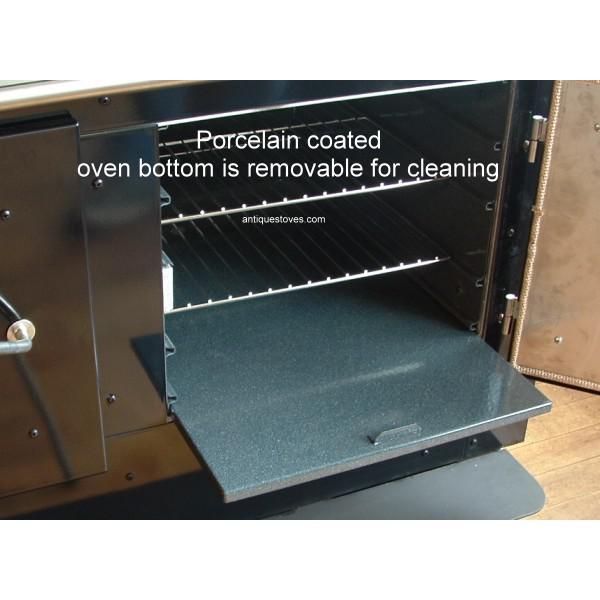

  • Porcelain enamel oven liner.
  • Smooth one-piece top with 10 inch lids makes cleaning easier.

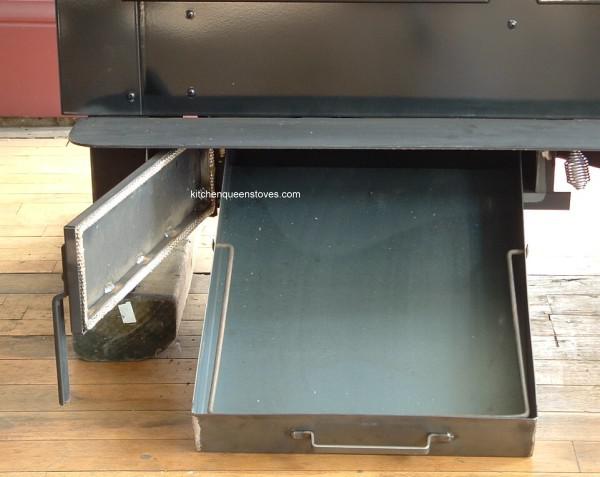

  • Grates and ash pan for easy cleaning
Kitchen Queen 480 Specs
Overall size 51" L x 32" W x 32" H
Cooking surface 43" x 21"

Back 45" W x 23" H
Oven 16" W x 13" H x 22" D
Oven capacity 8 loaves
Firebox 20" W x 16" H x 22" D
Log Length 19"
Firebox door 14" x 16"
Approx. burn time 12 to 16 hours
Approx. heating area 1500 to 2400 sq. ft
Flue outlet size 7 inches
Reservoir capacity 24 gallons
Shipping weight 800 lbs.
UL - ULC Listed 1482



Clearances to Combustibles
Side 12"
Rear 18"
Corner 12"
Clearances to protected surfaces ..............
Side 6"
Rear 6"
Corner 6"
Chimney Connector
Unprotected Surface 18"
Protected Surface 6"
